Voice and Data ftth onu epon fiber optic terminal equipment

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
C-Data
Model Number:
FD214GW
Type:
epon ONU
Application:
FTTH FTTB FTTX Network, Broadband Internet,IPTV,VOD,IP Camera
POTS Port:
2*RJ11 with 3REN
PON Port:
1 EPON optical interface
Ethernet Port(LAN):
4*10/100/1000M Auto-negotiation RJ45 ports
Power Supply Port:
12V DC input
Shell:
Plastic casing
Power consumption:
<7W
Dimensions:
170mm(L)*130mm(W)*30mm(H)
Weight:
0.3kg
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing.
Port
Shenzhen
Lead Time :
Shipped in 5 days after payment

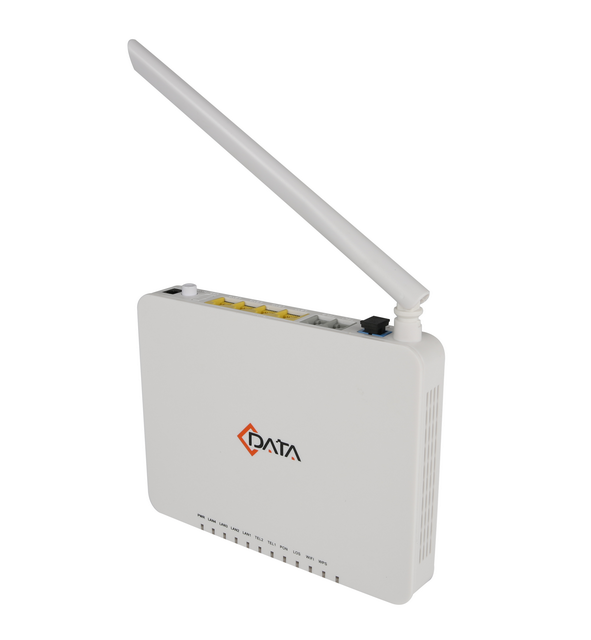

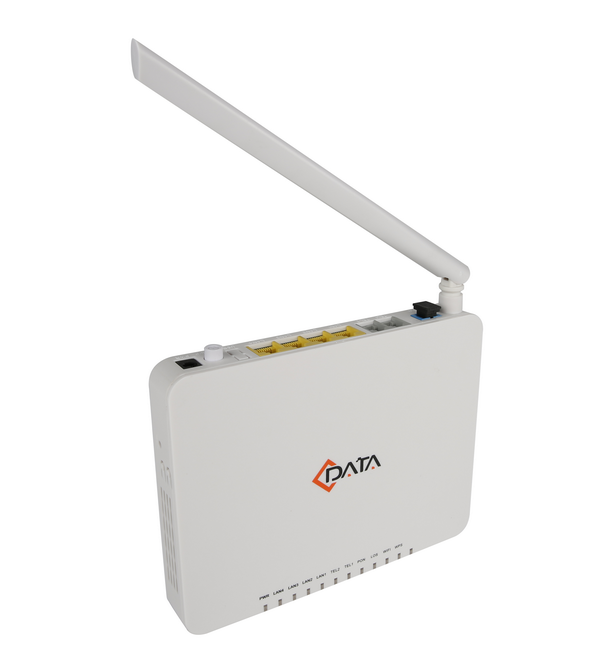

Voice and Data ftth onu epon fiber optic terminal equipment



ONT Certifications



Product Description



 1.Brief Views

FD214GW EPON HGU ONU is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the EPON network.



EPON is the latest generations of access network technology. IEEE802.3ah is the standard protocol of EPON. The EPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. EPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic.EPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. EPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.



EPON ONU FD214GW provide two POTS ports, four GE auto-adapting Ethernet ports and one 802.11 n/b/g WiFi port. The FD214GW features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the FD214GW provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.



2. Functional Features











  • Full compatible with IEEE802.3ah
  • Support two POTS
  • Support four GE auto-adapting Ethernet ports
  • Support one 802.11 n/b/g Wi-Fi port
































  • Support OAM and TR069 for remote management
  • Support Web for local management
  • Support Auto-negotiation andMDI/MDIX
  • Support the Ethernet interface rate, working mode andflows control
  • Support loopback at UNI

























  • Support packet filtering and anti-illegal message attack protection
  • Support performance statistics of Ethernet lines
  • Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
  • Support DHCP Option60 reporting the location information of the Ethernet interface







































  • Support PPPoE+ for accurate subscribers identification
    • Support H.248,MGCPandSIP protocol
      • Support IGMP Snooping
        • Support AES-128









3. Specifications



Item

Parameters

Specification

Interface

PON Port

1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM

Ethernet Port(LAN)

4*10/100/1000M Auto-negotiation RJ45 ports

Full Duplex / Half-Duplex

RJ45, Auto-MDI/MDI-X

Transmission Distance 100 Meter

POTS Port

2*RJ11 with 3REN

Max 1km distance

Balanced Ring, 55V RMS

Power Supply Port

12V DC input

With 12V 1A AC/DC adapter AC input

Management

NetworkManagement

Standard compliant OAMI interface as defined by IEEE802.3ah

Support TR-O69 and WEB management

Management

Function

Status monitor, Configuration management, Alarm management, Log management

Environmental
Specifications

Shell

Plastic casing

Power

External 12V 1A AC/DC power supply adapter

Power consumption: <7W

Dimensions

170mm(L)*130mm(W)*30mm(H)

0.3kg

Environment

Operating Temperature:0~50℃

StorageTemperature:-40~85℃

Operating Humidity:10%~90%(Non-condensing)

StorageHumidity:10%~90%(Non-condensing)

 WIFI Features

=   IEEE 802.11n compliant, 2.4 GHz

=   Full IEEE 802.11b/g legacy compatibility withenhanced performance

=   Two-stream spatial multiplexing up to300 Mbps PHY data rates

=   Support multi-SSID(Maximum 4 SSID)

=   Support automatic channel selection

=   Support hide SSID

=   Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2.



WIFI Specification

Performance parameters

Standard

IEEE802.11b/g/n

Frequency

2.400 ~ 2.500 GHz

Wireless data rate

IEEE 802.11b: 1,2,5.5,11Mbps

IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n: up to 200 Mbps

Modulation schemes

802.11g: 64QAM, 16QAM, QPSK, BPSK,     DSSS   802.11b: CCK, DQPSK, DBPSK

HT20: 64 QAM, 16QAM, QPSK, BPSK

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

RF receive sensitivity

802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps;

-91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps

802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps;

-89dBm @ 12 Mbps; -867dBm @ 18 Mbps;

-83dBm @ 24 Mbps; -79dBm @ 36 Mbps;

-75dBm @ 48 Mbps; -75dBm @ 54 Mbps

802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps;

-90dBm@6Mbps; -75dBm@54Mbps;

-86dBm@m0/20MHz;-69dBm@m15/20MHz;

RF TxPower

•TX power out B mode @ 11 Mbps: 18dBm +/- 2

• TX power out G mode @ 54 Mbps: 16dBm +/- 2

• TX power 11n mode @ HT20: 16 dBm +/-2

Encryption Mode

64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2,   802.1x

Transmission distance

100m indoors coverage area

300m outdoors coverage area

(varying depending on the actual environment)

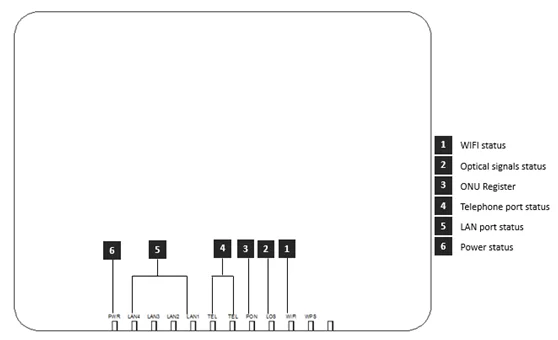

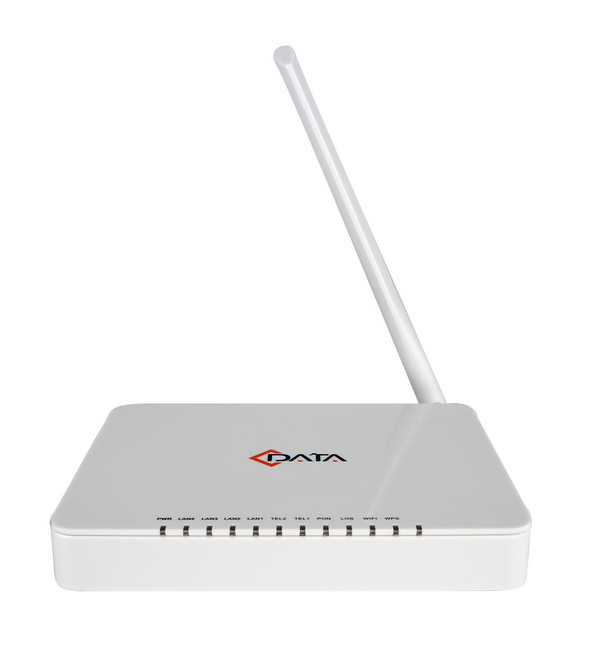

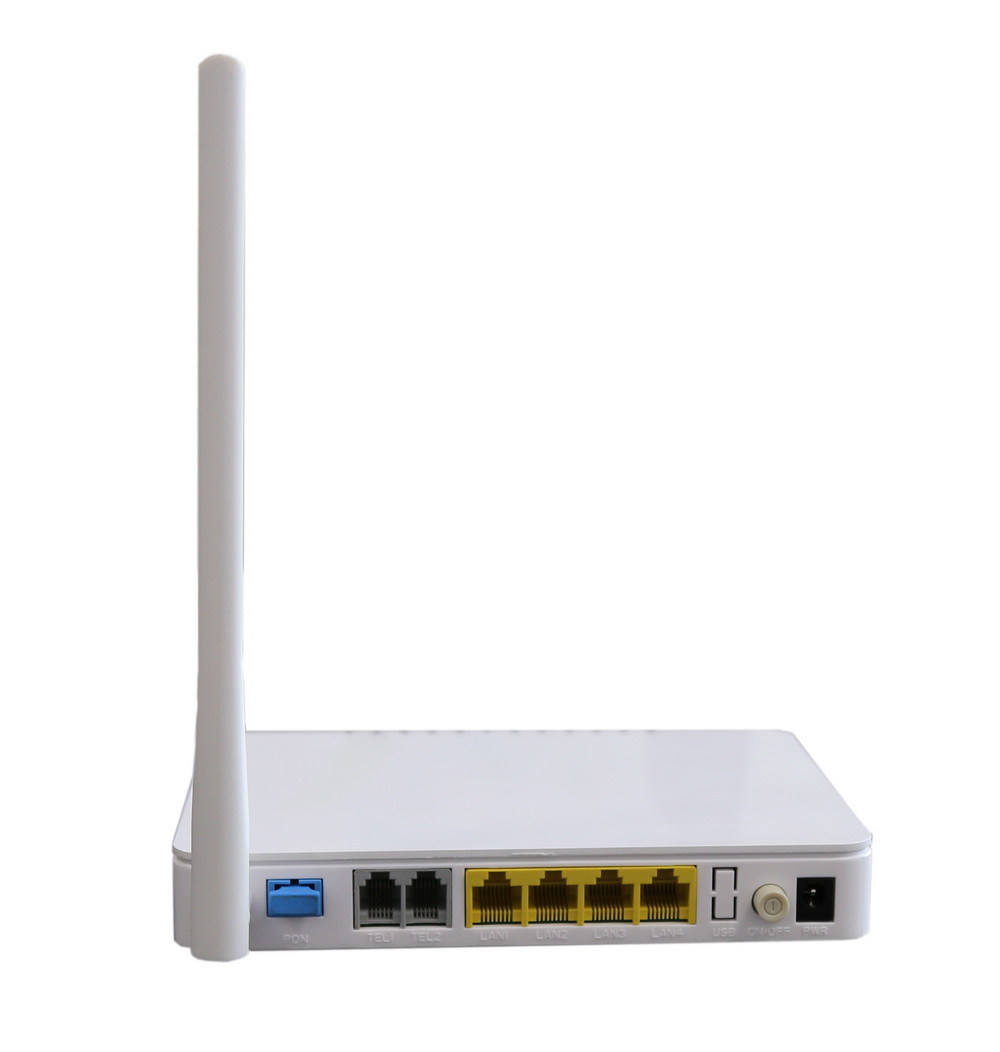

4. Product interface and LED definitions



Indicator

Description

1

WIFI

WIFI

Blinking:Data is being transmitted

On:Wi-Fi function Opens

2

LOS

EPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

3

PON

ONU Register

On: Success to register to OLT;

Blinking: In process of registering to OLT;

Off: In process of registering to OLT;

4

TELn

Telephone port status

On:The connection between the TEL port and the voice server has been set up

Blinking:The voice service of the TEL port is established;

Off:The connection between the TEL port and the voice server is not set up.

5

LANn

LAN port status

On: Ethernet connection is normal;

Blinking: Data is being transmitted through the Ethernet port;

Off: Ethernet connection is not set up;

6

PWR

Power status

On: The ONU is power on;

Off: The ONU is Power off;





5.Typical Application

Solution: FTTH,FTTB,FTTO,PON+EOC

Business:  Broadband Internet,Voice,IPTV,VOD,IP Camera,WIFI

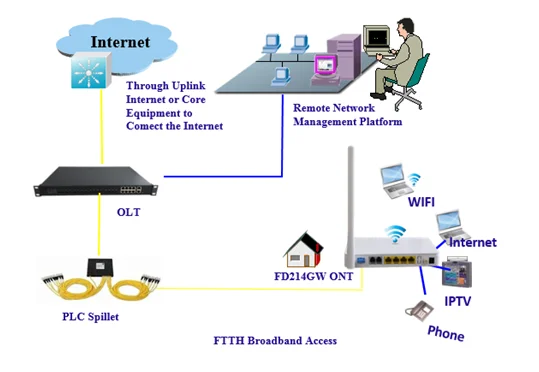

6.Network Constructions





7. Ordering information





Product Name

Product Model

Descriptions

HGU Type with Wi-Fi

EPON ONU

FD214GW

4*GE Ethernet interface, 2*POTS interface, 1*EPON interface, support Wi-Fi function, plastic casing, external power supply adapter
