Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: C-Data
  • Model Number: FD114GM
  • Type: Epon ONU Module
  • Splitting Ratio: 1:64 at most
  • Transmission Distance: 20KM at most
  • Application: FTTH/FTTB/FTTO
  • PON Interface: One EPON port
  • Ethernet Interface: Four 10/100/1000Mauto-negotiation
  • Power Supply: 2Pin Power Connector
  • Working Temperature: -10~65℃
  • Dimension: 150(L)*70(W)*31mm(H)
  • Weight: <3W

Packaging & Delivery

Packaging Details standard package
Delivery Time Shipped in 5 days after payment

 Work in outdoor platform Epon ONU Module







ONT Certifications



Product Description



 Product Overview





FD114GM is the EPON ONU devices. The FD114GM designed with one EPON port, four standard 10/100/1000 Base-TX Ethernet ports. It is aluminum alloy die casting shaping, and have good heat dissipation. The FD114GM ONU Module is small size module that is designed to work in C-DATA outdoor platform. It also can be integrated with the third-party access network products as a functional module to provide the EPON service.



FD114GM provides the key functionality of 802.3ah EPON ONU. By using the EPON technology, the FD114GM provides a high-speed data channel through a single optical fiber with a rate of 1.25 Gbit/s on bi-direction. In addition, it offers the QOS, flexible bandwidth allocated to provide quality high-speed data service, voice service, and video service.




Function Features



  • Aluminum alloy die casting shaping, good heat dissipation
  • Compliant with IEEE802.3ah Standard.
  • Maximum distance:20km;Maximum splitting Ratio:1:64
  • Support port-based rate limitation and bandwidth control
  • Support data encryption
  • Support multicasting
  • Support Port Isolation
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support ONU auto-discovery/Link detection/remote upgrade of software
  • Support Port-based VLAN and IEEE802.1Q VLAN
  • Support performance statistics based on ports
  • Support ACL achieve the purposes of access control
  • Support various LLID configuration and single LLID configuration. Different user and different service could provide different QOS by means of different LLID channels
  • Support software online upgrading
  • EMS network management based on SNMP





Network Construction



  • CATV
  • Internet Access
  • VOD
  • IPTV
  • Camera monitor system


Specification

Item

Parameters

Specification

Interface

PON Interface

One EPON port

Meet 1000BASE-PX20+ standard

Up to 1.25Gbps Upstream and Down-stream

SC Connector

Single-mode fiber, single-strand

Maximum split ratio 1:64

Up to 20Km distance

Ethernet Interface

Four 10/100/1000Mauto-negotiation

Full/Half-Duplex

RJ45 type connector , Auto MDI/MDI-X

Up to 100m distance

Performance Parameters

PON Optical Parameters

Wavelength: Upsteam1310nm, Downstream 1490nm

Transmitter Optical Power: 0~4dBm

Optical Receive Sensitivity: -27dBm

Saturation Optical Power:-3dBm

Data Transfer Parameters

Data Transfer Rate: Upstream 900Mbps;Downstream 950Mbps

LAN Interface: 1000Mbps

Packet Loss:<1*10E-12

latency:<1.5ms

Business Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG,VLANconversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Network Management

Management Mode

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support Remote management through SNMP and Telnet

Local management

Function

Status monitor, Configuration management, Alarm management, Log management

Indicator

Indicator Description

PWR: Power up or down

ACT: Optical Link Status

REG:ONU registered

SYS: System

LAN:LAN Status

Physical Features

Power Supply

2Pin Power Connector

Power Consumption

<3W

Dimension

150(L)×70(W)×31mm(H)

Weight

<0.3kg

Environment Attribute

Working Temperature:-10~65

Storage Temperature:-40~85

Working humidity:10%~90%non-condensing

Storage humidity:10%~90% non-condensing





  Order Information

Product

Item

Description

Epon ONU Module

FD114GM

Four 10/100/100M Ethernet Ports, one EPON Port, 2Pin Power Connector, aluminum alloy die casting shaping

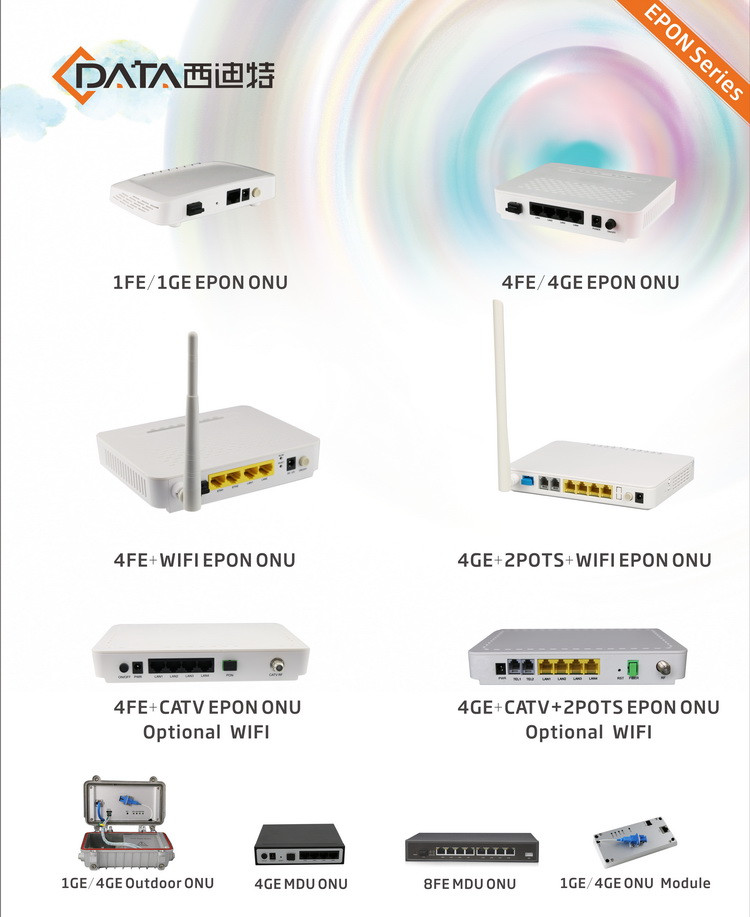

Related Products:
