4GE+ 2POTS + CATV+ Wi-Fi Single Fiber GPON ONT FD804GW

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
C-DATA
Model Number:
FD804GW
Type:
optical network terminal
Ethernet Port(LAN):
4*10/100/1000Mauto-negotiation
POTS Port:
2*RJ11 with 3REN
CATV Interface:
1 RF output
PON Port:
1*GPON port
Max splitting ratio:
1:128
Power Supply Port:
12V DC input
Dimension:
200mm(L) x 140mm(W) x 33mm (H)
Weight:
0.5kg
Power Consumption:
<9W

Gigabit Passive Optical Network terminal GPON ONT OLT 8PON






ONT Certifications



Product Description

 ONT FD804GW (4GE+2POTS+RF+Wi-Fi) series is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability ,QoS guarantee ,comprehensive management and flexible networking construction, etc. ONT FD804GW series is fully compatible with ITU-T G.984 technology standard.

It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.

ONTFD804GW series has 1 PON port , 2 POTS port, four 10/100/1000BASE-T ports and one CATV output, support Wi-Fi function.



1. Functional Features



n  Full compatible with ITU-T G.984



n  Support two POTS



n  Support four GE auto-adapting Ethernet ports



n  Support one CATV output



n  Support one 802.11 n/b/g WiFi port



n  Support OMCI and TR069 for remote management



n  Support Web for local management



n  Support Auto-negotiation and MDI/MDIX



n  Support the Ethernet interface rate, working mode and flows control



n  Support loopback at UNI



n  Support packet filtering and anti-illegal message attack protection



n  Support performance statistics of Ethernet lines



n  Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.



n  Support DHCP Option60 reporting the location information of the Ethernet interface



n  Support PPPoE+ for accurate subscribers identification



n  Support H.248,MGCP and SIP protocol



n  Support IGMP Snooping



n  Support AES-128



n  CATV support turn on/off RF output remotely



2. Typical Application

²  Typical Solution:FTTH,FTTO, PON+EOC



²  Typical Business:INTERNET, VOICE, CATV, IPTV, VOD, IP Camera, Wi-Fi





Network Construction

  Figure: FD804GW Application Diagram
3.Specification

Item

Parameter

Interface

Uplink Interface

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate:2.488Gbps

Upstream Data Rate:1.244Gbps

SC/PC single mode fiber

28dB Link loss and  30KM distance with 1:128

CATV Interface

1 RF output

Female F-Type Connector

POTS Port

2*RJ11 with 3REN

Max 1km distance

Balanced Ring, 55V RMS

Ethernet Interface

4*10/100/1000Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Performance Parameters

PON Optical Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0
~4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG,VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support link detection

Network Management

Management Mode

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support TR069 and WEB management

Management Function

Status monitor, Configuration management, Alarm management, Log management

Physical Features

Shell

Plastic casing

Power

External 12VDC/1A power supply adapter

Power consumption: <9W

Dimension and Weight

Item Dimension:200mm(L) x 140mm(W) x 33mm (H)

Item weight:0.5kg

Environmental
Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 5% to 95%(Non-condensing)

CATV

Item

Model

FD804GW

Wavelength

1100-1600nm

Optical return loss

>45dB

RF impedance

75Ohm

WIFI Features

=   Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz

=   Full IEEE 802.11b/g legacy compatibility with enhanced performance

=   Two-stream spatial multiplexing up to300 Mbps PHY data rates

=   Support multi-SSID(Maximum 4 SSID)

=   Support automatic channel selection

=   Support hide SSID

=   Support wireless security of  64/128 bit WEP,802.1x,WPA and WPA2

Item

Parameter

Performance  parameters

Standard

IEEE802.11b/g/n

Frequency

2.400 ~ 2.500 GHz

Wireless data rate

IEEE 802.11b: 1,2,5.5,11Mbps

IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n: up to 200 Mbps

Modulation schemes

802.11g: 64QAM, 16QAM, QPSK, BPSK,   DSSS   802.11b: CCK, DQPSK, DBPSK

HT20: 64 QAM, 16QAM, QPSK, BPSK

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

Encryption Mode

64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2,   802.1x

Transmission distance

100m indoors coverage area

300m outdoors coverage area

(varying depending on the actual environment)

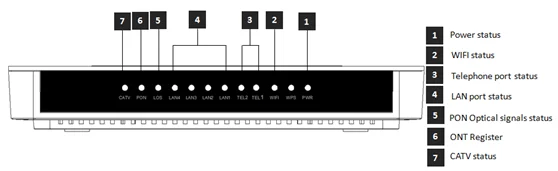

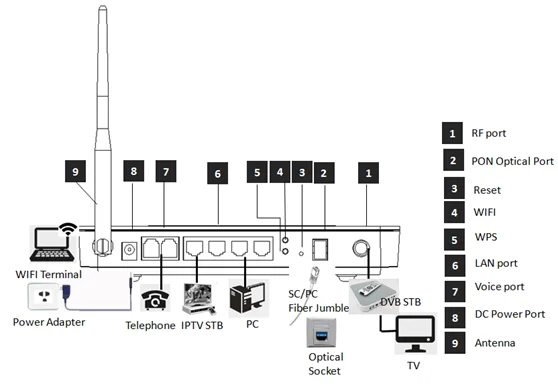

4. Product interface and LED definitions


Indicator

Description

1

PWR

Power status

On: The ONU is power on

Off: The ONU is Power off

2

WIFI

WIFI

Blinking:Data is being transmitted

On:Wi-Fi function Opens

3

TELn

Telephone port status

On:The connection between the TEL port and the voice server has been set up

Blinking:The voice service of the TEL port is established

Off:The connection between the TEL port and the voice server is not set up.

4

LAN1-4

LAN port status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up

5

LOS

GPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

6

PON

ONT Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Failed to register to OLT;

7

CATV

CATV status

On:CATV optical normal

Off:The CATV signals are not received



5.Order Information

Product Name

Product Model

Descriptions

4GE + 2POTS + CATV+ Wi-Fi

GPON ONU

FD804GW

4*10/100/1000M Ethernet interface, 1 GPON interface, 2 POTS interface, support Wi-Fi function, Input optical power -15dBm~0dBm, Plastic casing, external power supply adapter

FD804GWL

4*10/100/1000M Ethernet interface, 1 GPON interface, 2 POTS interface, support Wi-Fi function, Input optical power -18dBm~-9dBm, Plastic casing, external power supply adapter

FD804GWA

4*10/100/1000M Ethernet interface, 1 GPON interface, 2 POTS interface, support Wi-Fi and AGC function, Input optical power -18dBm~0dBm, Plastic casing, external power supply adapter



Related Products



Our Services

1.Good Reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design and put your good idea into products.
3.Warranty: 1-years warranty.

4.Technology support: On-site technical support, Telemaintenance, Free call and E-mail technology supports.

5.Training service support: Provide free training service on installation and debugging.

FAQ

1.Can we get a lower price?
   Yes,price is not a problem,everything could be negotiated based on the quantity.

2.What is your MOQ?
   No MOQ for any sample test.

3.OEM,ODM Service is available?
   Yes, C-Data have strong ability to offer customers ODM&OEM products of highest quality.
   And it will requirement about your quantity.
