Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: C-DATA
  • Model Number: HF200-3615
  • Type: optical transmitter
  • Working Temperature: 0~50℃
  • Power supply: 100 ~ 240 Volt AC
  • Power consumption: 25W
  • Wavelength: 1530 ~ 1563
  • RF bandwidth: 45 ~1000 MHz
  • Return loss: 16dB
  • Interface port: RJ45, RS232
  • Dimension(in inches): 19x14.25x1.75
  • RF connector: F type

Packaging & Delivery

Packaging Details With C-DATA logo or neutral
Delivery Time Shipped in 5 days after payment

HF200-3615 Series 1550nm Transmitter

Product Description

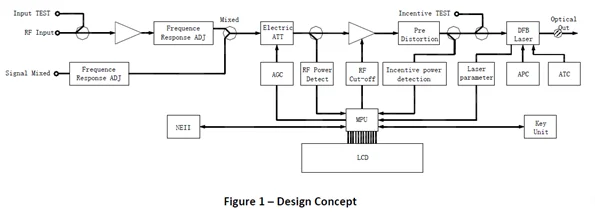

HF200-3615 Direct Modulated Transmitter delivers high performance signal transmission of NTSC, PAL, ATC, QAM, and related digital information for CATV and/or telephony applications. It is based upon custom high-linearity optically isolated DFB (Distributed Feedback) lasers, specifically designed for multi-channel AM video applications. The built-in control circuits provide an exceptionally low noise and inter-modulation characteristics. Automatic output power control, coupled with temperature stabilization provided by a thermoelectric cooler ensures maximum performance and longer laser life.



The units are packaged in slim 1.75-inch high (1RU), 19-inch aluminum rack-mounted enclosures. Each unit is fitted with redundant self-contained power supplies with 90-265VAC inputs.



All internal laser parameters and monitoring functions are under microprocessor control: the front panel displays status information related to laser operation, temperatures, and RF input.





Feature

  • Transmits NTSC, PAL, ATC, and related digital information for CATV and/or telephony applications.
  • Available in a variety of output levels.
  • High linearity, optically isolated, distributed AM feedback DFB laser.
  • 54-1000MHz RF input bandwidth.
  • Front panel laser diode and rear panel RF input test points (-20dB).
  • Operation wavelength: 1550nm.
  • Low RF drive levels enabled due to built-in RF amplifier and Automatic Gain Control.
  • Microprocessor-controlled diagnostics, front panel LCD display and controls.
  • Integrated SNMP network interface, functional on units with optional S/W loading.
  • Power supplies optional in VDC.







Specifications

Type

Item

Values

Notes

General

Operating temp. (ºC)

0 – 50

32 – 122 ºF

Storage temp. (ºC)

-40 – 85



Operating relative humidity (%)

5 – 95

Non-condensing

Power supply (Volt AC)

100 – 240



Power consumption (W)

25



Size (WxDxH in inches)

19x14.25x1.75



Interface port

RJ45, RS232



Optical

Wavelength (nm)

1530 – 1563



Output power (dBm)

6 and 10

Depending on model

Optical connector

SC/APC



RF

RF bandwidth (MHz)

45 – 1000



Input level (dBmV)

15 – 25

AGC

Flatness (dB)

-0.75 –  +0.75



Return loss (dB)

16

75Ω impedance

RF connector (main input)

F type



CSO (dB)

-57

78 channel load, back to back at 0dBm receive power

CTB (dB)

-63



Our Services

1.Good Reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design and put your good idea into products.
3.Warranty: 1-years warranty.

4.Technology support: On-site technical support, Telemaintenance, Free call and E-mail technology supports.

5.Training service support: Provide free training service on installation and debugging.

FAQ

1.Can we get a lower price?
   Yes,price is not a problem,everything could be negotiated based on the quantity.

2.What is your MOQ?
   No MOQ for any sample test.

3.OEM,ODM Service is available?
   Yes, C-Data have strong ability to offer customers ODM&OEM products of highest quality.
   And it will requirement about your quantity.
