Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: C-Data
  • Model Number: CW9220AP
  • Type: wireless access point
  • Wireless standard: IEEE802.11a/b/g/n MIMO 2x2
  • Operating frequency: 2.4GHz/5GHz
  • antenna: Optional built-indirectional antennas or outdoor external antennas
  • WAN Port: 1*1000Base-Tx WAN/PoE IN port (RJ-45 connector)
  • LAN port: 1*1000Base-Tx LAN/PoE OUT port (RJ-45 connector)
  • Console Port: 1 RJ45 Type connector
  • Power supply: PoE power supply(36---48V)
  • Dimension: 239mm(H)195mm(W) 83mm(D)
  • Weight: 3Kg

Packaging & Delivery

Packaging Details normal packing
Delivery Time Shipped in 5 days after payment

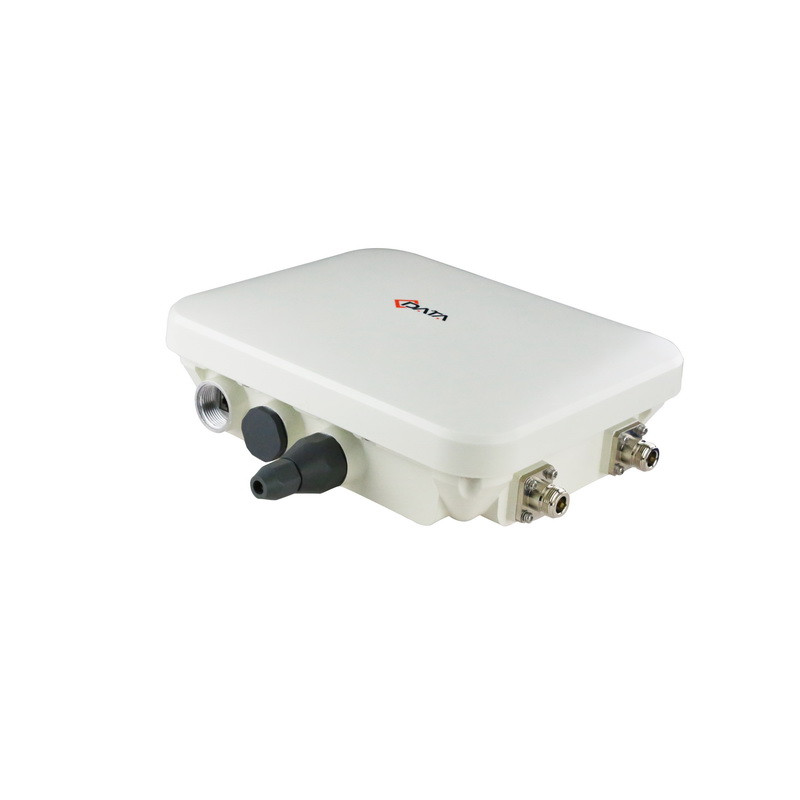

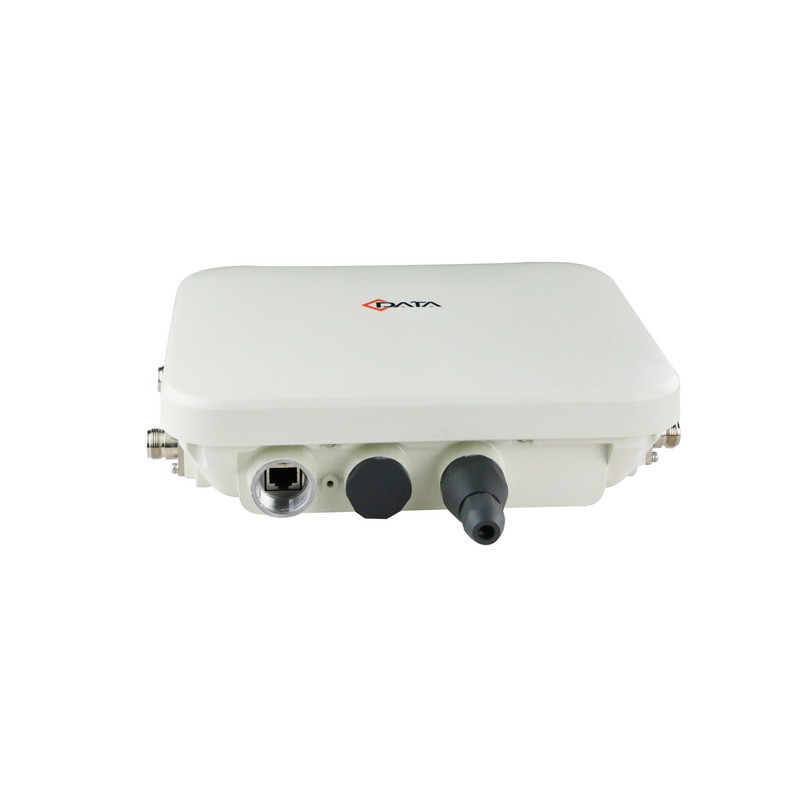

C-Data 500mW Outdoor High-power Wireless Access Points Long Range


CW9220AP is an outdoor high power wireless access point product. The power of the AP is up to 500mW, with high gain directional antenna, it can cover a large scope with high bandwidth and stability; provide a better mobile access service. It is suited for varied wireless access application, include wireless coverage of Squares, residential zone, rural areas internet service and other outdoor wireless access scenarios.


CW9220AP full meets 802.11b/g/n and 802.11a/n protocol standard and the maximum support 600Mbps rate. It supports 13dBi internal antenna or external omnidirectional / directional high gain antenna.


The device design with cast Aluminum enclosures, fully compliant with IP67antidust and waterproof standard, it can work at -40 to 65 degrees wide temperature environment. It supports POE power supply and poles installation, easy deployment.





  • Support 802.11a/b/g/n technical standard, built-in 2*2MIMO to the maximum support 600Mbps rate
  • High RF power output, up to 500mW
  • High-sensitivity, meets technical standard of operators
  • supports 48V POE reverse power supply and 48V PSE
  • Waterproof, anti-dust, anti-ultraviolet, wide temperature and IP67 protection standards design to meet the various outdoor environment
  • Support Telnet and WEB management







Operating frequency


Wireless standard

IEEE802.11a/b/g/n MIMO 2x2

TX power

11b             27dBm

6-54Mbps         27dBm

MCS0            27dBm

MCS7            24dBm

Receiver Sensitivity

1Mbps       -97dBm

11Mbps     -91dBm

6Mbps        -95dBm

54Mbps      -78dBm

MCS0-HT20         -90dBm

MCS7-HT20         -73dBm

MCS0-HT40         -87dBm

MCS7-HT40         -71dBm

Software features

Network function

Support 4 ESSID and BSSID

Support QoS and business flowrate allocation

Support WME

Support 2 layer and 3 layer protocol

Support DHCP

Support NAT

Support DDNS

Support firewall

Management function

Support WEB configuration management

Support SNMPv2

Support Telnet CLI

Support remote and batch software upgrade

Support FTP, TFTP

Support Remote Syslog

Support console port configuration and debugging

certificate and security functions


WEP 64/128 bit encryption

MAC encryption

Standard RADIUS server interface, channel support AES encryption

Environment Parameters

Power supply

PoE power supply(36---48V)


239mm(H)195mm(W) 83mm(D)



LAN port

1*1000Base-Tx LAN/PoE OUT port (RJ-45 connector)

WAN Port

1*1000Base-Tx WAN/PoE IN port (RJ-45 connector)

Console Port

1 RJ45 Type connector

Status Indicators

Support SYS, WAN, LAN. 2.4G, 5G indicators

Antenna type

Optional built-indirectional antennas or outdoor external antennas (4 N Type RF connectors)

wind resistance grade

165 mile/h

power consumption


IP Protection Class


System memory




Operating temperature



0-100% (non-condensing)

Storage temperature




Ordering information


Product Name

Product Model


Outdoor high power

Wireless access point


802.11a/b/g/n ,dual-band, 500mW outdoor high power wireless access point
