Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: C-DATA
  • Model Number: FD1508GS
  • Product name: GPON OLT
  • Color: Black
  • Rack: 1U 19 inch standard box
  • Copper: 8*10/100/1000M auto-negotiable
  • Slot: 1*10 Gigabit uplink card slot 2 power module slot
  • PON Port: 8
  • Max splitting ratio: 1:128
  • Power Consumption: 65W
  • Dimension: 440mm(L)*391mm(W)*44mm(H)
  • Weight: 4kg

Packaging & Delivery

Packaging Details With C-DATA logo or neutral
Delivery Time Shipped in 5 days after payment

2.5Gbps GPON OLT for Passive Optical Network FTTH







OLT Certifications



Product Description



C-DATA presents the industry's leading GPON solution of FD1508GS, which complies with the relevant standards of ITU G.984.x and FSAN. FD1508GS is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. The product is in compact design and convenient for flexible using, easy to deploy with high performance. It can meet the requirements of equipment performance and compact volume of the room environment. It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption. The product is suitable for the "triple play" service, the resident of optical access network, video surveillance network, enterprise network and the Internet of the network applications.



FD1508GS is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. It can meet the requirements of equipment performance and compact volume of the room environment. It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption.



1. Functional Features









       Comply with ITU-T G.984/G.988 standards and  China's Telecom industry GPON standards

































Support OMCI remote management of ONT/ONU



Compatible with ITU-984.4 OMCI protocol Standalone 1U 8PON compact design of OLT products





























        SFU, HGU series ONT products, Meet the needs of the different scenarios of networking

























The complete layer 2 switching function

Easy-to-use management system

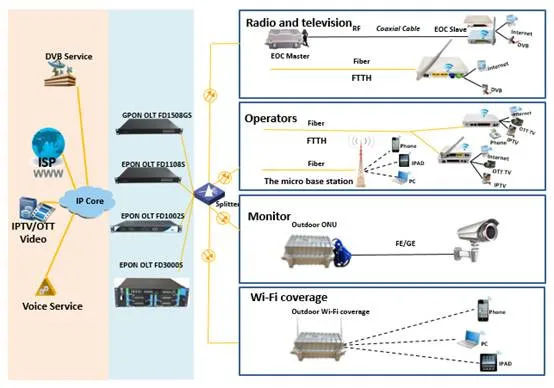

2. Typical Application

3.Specification


Item

FD1508GS



Chassis

Rack

1U 19 inch standard box

Slots

1*10 Gigabit uplink card slot
2 power module slot

Uplink Port

Copper

8*10/100/1000M auto-negotiable

SFP

8 SFP slots(1000BASE-TX interface)

10GE card

2 SFP (optional)

PON Port

QTY

8

Physical Interface

SFP Slots

Connector Type

ITU-TG.984.2Class B+

Max splitting ratio

1:128

Management Ports

1 10BASE-TX out band port

1 CONSOLE port

PON Port Specification

(Apply to C-Data PON module)

Transmission Distance :20KM, PON port speed: Downstream Data Rate: 2.5Gbps, Upstream Data Rate: 1.25Gbps, Wavelength: 1490nm TX,1310nm RX, Connector: SC,

Fiber Type: 9/125μm SMF, TX Power: +1.5~+5dBm,

Rx Sensitivity: -28dBm, Saturation Optical Power: -8dBm

Management Mode



SNMP, Telnet, CLI

Management Function

Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. PON management function: DBA ,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management

Dimension

440mm(L)*391mm(W)*44mm(H)

Weight

4kg

Power Supply

220VAC

AC: 90V~240V,47/63Hz

-48DC

DC:-36V~-72V

Power Consumption



65W

Operating Environment

Working Temperature

0~50

Storage Temperature

-40~85

Relative Humidity

5~90%(non condensing)


4.Order Information

Product Name

Model

Product Description

Standalone OLT

FD1508GS

8PON GPON OLT 1U chassis, 8 GE uplink optic ports, 8 GE uplink electric ports, 220VAC or -48VDC plug-in power modules, supports dual power configuration, optional 10Gbit uplink port

Ethernet SFP
optical module

SFP-GFX-D20

Gigabit Ethernet SFP optical module, the default 20KM double fiber model

OLT SFP optical
module

OLT-SFP-B+

ITU-TG.984.2Class B+

10Gb uplink card

FD1502GX

2*10Gb uplink interface, can be installed in the FD1508GS frame
