Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: C-Data
  • Model Number: CD5204L
  • Type: EOC Slave
  • Chipset: Intellon 7411
  • Frequency Range: 7.5MHz-65MHz
  • Physical layer speed: 600Mbps
  • MAC layer throughout: 320Mbps
  • Connect slave: 253 units
  • Ethernet ports: 4

Packaging & Delivery

Packaging Details standard packing
Delivery Time Shipped in 5 days after payment

Ethernet Over Coaxial Cable/EOC modem/EOC Slave





CD5204L is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking.

CD5204L is based the Qualcomm chipset solution,with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The PHY Layer speed is 600Mbps,the MAC Layer throughput is up to 320Mpbs.





Function Features:

  • Based on HomePlug AV solution and Qualcomm chipset
  • 7.5-65Mhz frequency for EOC signals., no influence on CATV Service
  • PHY Layer speed 600Mbps
  • Support data encryption
  • 4 100M auto-negotiation Ethernet port
  • Support the isolation of slave under one master
  • Support Port-based VLAN and 802.1q VLAN
  • Support bandwidth limited
  • Support QOS configuration based on slave port or VLAN.
  • Support broadcast storm control.
  • Support data packages count
  • Automatically distribute configurations to newly connected slaves, available to use as soon as correctly connected and power on.
  • Support WEB,CLI and SNMP management
  • Support on-line upgrading




Specification

Item

Parameters

CD5204L

Interface & indicator

RF interface

1*TV(RF signal) OUTPUT, metric F connector

1*CABLE(MIX)INPUT, metric F connector

Ethernet interface

4*10/100M auto-negotiation, RJ45

Power interface

1*DC12V power supply interface

LED indicators

1 x power indicator

1 x system indicator

1 x CABLE indicator

LAN indicator(each Ethernet port has 1 indicator)

Performance   parameters

RF parameters

Frequency:7.5-65MHz

Output level:110±5dBuv

Receive sensibility:45dBuv

Return loss:>15dB

Output impedance:75Ω

Transmission

PHY Layer:600Mbps

Throughput on MAC Layer:320Mbps

Modulation Mode

OFDM– 2690-carriers
4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO

Working Mode

TDMA/CSMA

Encryption Mode

AES-128

Standard

EOC Standard

IEEE P1901(Draft)

HomePlug AV

Ethernet Standard

IEEE 802.3, IEEE 802.3x, IEEE 802.3u

IEEE802.1P, IEEE802.1Q

Software

Network Management

WEB, CLI, SNMP

Software Features

VLAN, QOS, Bandwidth Control, Broadcast storm limitation

Physical Features

Power supply & Consumption

Power adapter:12VDC 0.5A

Power consumption:<5W

Dimension

150*116*28mm

Weight

0.5kg

Environment Attribute

Work temperature:0~50℃

Stock temperature:-40~85℃

Work humidity:10%~90%, non-condensation

Stock humidity:10%~90%, non-condensation

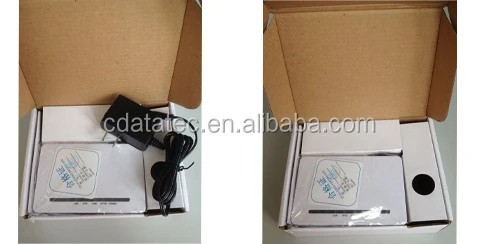

Packaging&Shipping:

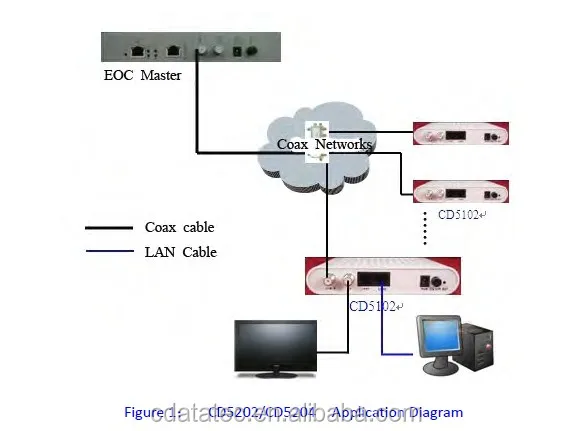

Typical Application:

Network Access

VOD(video on demand service)

IPTV

Video Surveillance








 Related Products





Our Services

1.Good Reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design and put your good idea into products.
3.Warranty: 1-years warranty.

4.Technology support: On-site technical support, Telemaintenance, Free call and E-mail technology supports.

5.Training service support: Provide free training service on installation and debugging.

FAQ

1.Can we get a lower price?
   Yes,price is not a problem,everything could be negotiated based on the quantity.

2.What is your MOQ?
   No MOQ for any sample test.

3.OEM,ODM Service is available?
   Yes, C-Data have strong ability to offer customers ODM&OEM products of highest quality.
   And it will requirement about your quantity.
